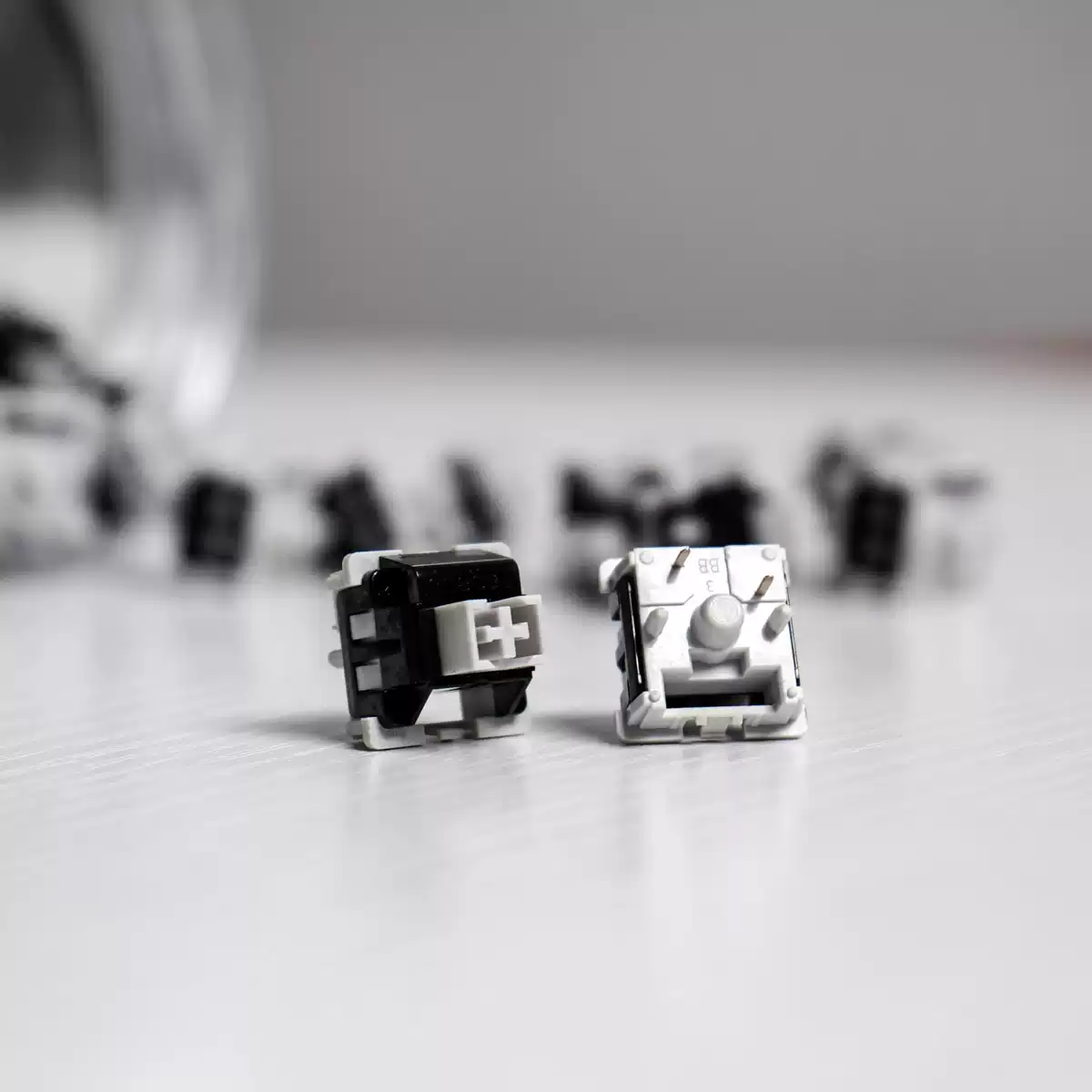

LEOBOG - Graywood V4 Linear Switches

The Graywood V4 Switches by LEOBOG are engineered for high-performance custom mechanical keyboards and enthusiast builds. Featuring a premium POM stem for low friction and smooth travel, these linear switches include a dual-stage spring mechanism to balance rapid actuation with satisfying bottom-out feel.

With an actuation force of approximately 40gf and bottom-out around 50gf, and a total travel distance of 3.6mm, they deliver fast, responsive results. The housing uses PC top and nylon bottom parts for stability and clarity. Factory pre-lubed out of the box, they're ready for build and ready to perform. Ideal for both gaming and typing enthusiast setups, these switches balance smoothness, feel, and quality materials.

Specifications

Type	Linear
Stem	POM long-pole
Pins	5-pin MX-stem compatible
Actuation Distance	~1.5 mm (±0.3 mm)
Total Travel	~3.6 mm (±0.3 mm)
Operating Force	~40 gf (±3 gf)
Bottom-Out Force	~50 gf (±3 gf)

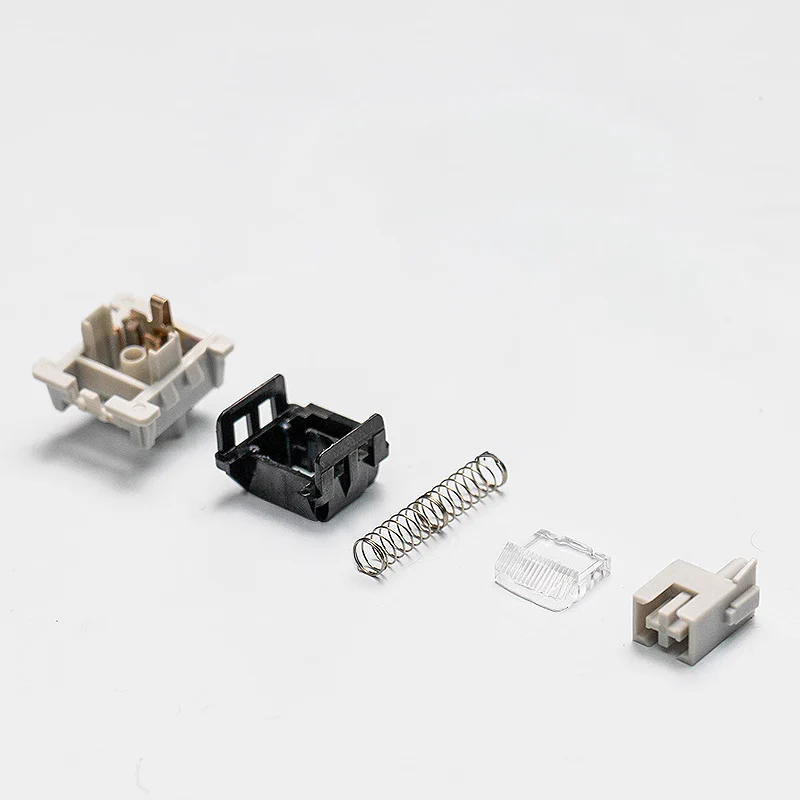

Spring	Dual-stage spring system
Housing Top	PC material
Housing Bottom	Nylon / PC
Lubrication	Factory pre-lubed
